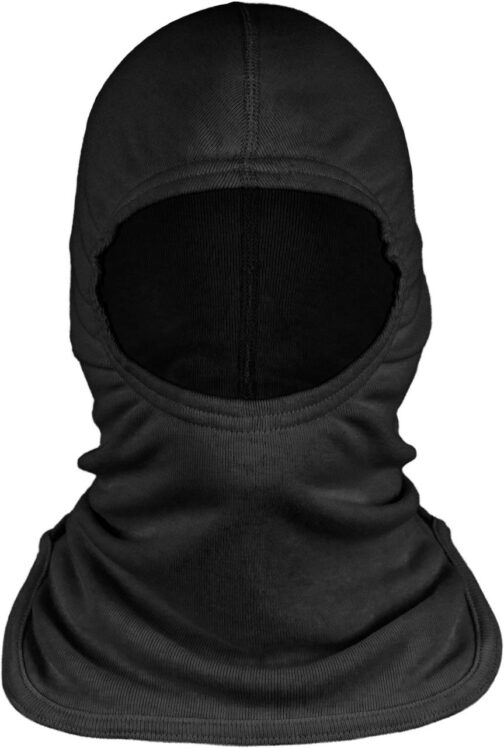

PGI Cobra Classic Carbon Shield Hood, NFPA Cert
$35.00
Description
Now PGI’s Cobra™ Series is available in Revolutionary Carbon Fiber!
As technology continually moves forward, you’ve relied on PGI to be the innovators in developing, designing and introducing the latest in protective fabrics. Carbon Shield™ is a flame resistant fabric breakthrough based on carbon fiber technology. The fabric simply won’t burn in air. Tests show that Carbon Shield™ doesn’t shrink, crack or decompose when exposed to direct heat or flame at temperatures exceeding 2300 degrees F (1300 degrees C) for over 90 seconds. In comparison, the leading flame resistant fabrics burn, begin to shrink while charring, then crack and decompose. This is all in about 5 seconds. Carbon Shield™ is manufactured through a proprietary cooking process where the yarns receive their initial carbonization. This process of carbonizing the fiber, by actually forging it in fire, is what sets Carbon Shield™ apart from all other flame resistant fabrics. There’s no room for compromise when it comes to protection. Carbon Shield™ is the ultimate high-tech fabric for thermal protection and comfort.
- Double-ply hood provides coverage of neck, upper chest and to the top of shoulder blades
- Contoured shoulders reduce bunching of bib
- Flat stitched seams
- X-heavy 1/2″ wide elasticized face opening
- Cover stitched bound drape
- UL Classified to NFPA 1971: Standard on Protective Ensembles for Structural Fire Fighting and Proximity Fire Fighting – Current Edition
| Non-flammable If exposed to extreme heat or flame fabric glows but won’t burn. It retains a certain tenacity at temperatures exceeding 2300°F for over 90 seconds. Non-melting Arc Resistant – ATPV 23.3 HRC 2 Superior Protection from Welding Sparks and Molten Metal Non-Shrinking Forms No Openings Deposits No Tar Low Heat Conductivity – (Disburses Heat Energy) Infrared Non-Reflective Natural Black Color Hides Soil Lightweight Yet Excellent TPP |
Excellent Stretch & Recovery Properties 1 x 1 Rib knit construction. Knit to allow 200% stretch for maximum stretch and recovery. Comfortable Chemical Resistance Excellent Shape Retention Odor Absorbing Qualities
 Resistant to Ultra Violet Rays Highest Limiting Oxygen Index (LOI) Meets NFPA Requirements Meets CAL-OSHA REQUIRMENTS Complies with OSHA Rule 29 CFR Part 1910, 269 Meets CE Requirements Compliant with NFPA 70E – Current Edition. |
FABRIC:
- Outer shell is a blend of Carbon/High Strength Aramid -approx. 6.5 oz sq yd.
- 1 x 1 rib knit fabric – knit to allow approx. 200% stretch for maximum stretch and recovery.
- Calendared to minimize laundry shrinkage.
STITCH TYPES AND SEAMS:
- All stitching conforms to federal Standard 751 Specifications (FED-STD-751).
- Major seams are flat seam assembled, stitch type 607.
- Elastic in face opening is serged in with stitch type 504 and reinforced with bottom cover-stitch, stitch type 406.
- Binding is applied with bottom cover-stitch, stitch type 406.
THREAD:All seams are sewn with 100% Nomex® thread size Tex 40.
CONSTRUCTION:
- Composed of two layers throughout.
- Seamed from top of face opening to bottom back then cover-stitched for extra strength.
- Face opening is circular in shape and serged with x-heavy duty ½” wide elastic around the perimeter. The elastic is then folded back ½” and cover stitched. The face opening stretches a full 16″ (which is 25% more than conventional hoods) for easy donning and a snug fit around face of SCBA mask. Face opening maintains original shape after repeated launderings.
- The bottom edge of hood is bound with self-material bias binding.
- Shoulders are contoured on each side allowing the hood to lie flat on the chest and back for maximum coverage.
- Face opening is circular and measures between 4.6″ to 5.6″ in diameter.
- Length of hood below face opening approx. 9″.
- Length of hood at side from top to bottom approx. 15″.
- Length of hood at front and back from top to bottom approx. 18½”.
FABRIC PERFORMANCE VALUES:
| Arc Thermal Performance Value (ATPV) | 23.3 |
| Thermal Protective Performance | |
| Initial (seconds) | 24 |
| After 5 washings (seconds) | 27.6 |
| After Flame | |
| Initial (inches) | 0 x 0 |
| Warp (wales) x Fill (Courses) | |
| After 5 washings (seconds) | 0 x 0 |
| Char Length | |
| Initial (inches) | 2 x 1.9 |
| After 5 washings (inches) | 1.4 x 2.3 |
| Fabric Burst Strength (N) | 287 |
| Seam Burst Strength (N) | 469.1 |
| Heat and Thermal Shrinkage | |
| After 5 washings | 0% |
| Limiting Oxygen Index (LOI) | 55 |
| Melt or Drip when exposed to flame | None |
- Each hood is clearly labeled to identify material contents, NFPA acceptance, UL Classification, Date of Manufacture, and Care Instructions. Included with each hood is a complete users information guide.
- Meets or Exceeds Industry Standards
- UL classified to meet or exceed NFPA 1971-Current Edition; European standard 13911-June 2008 (CE marked to EC directive 89/686/EEC);
- Compliant with CAL-OSHA, Sections 3406 and 3410(d) and OSHA Rule 29 CFR, Part 1910, 269.
- Compliant with NFPA 70E Current Edition and meets performance specifications of ASTM-F-1506.
- ARC Rating: 23.3 – Hazard / Risk Category – 2.
